| Quantity: | |
|---|---|

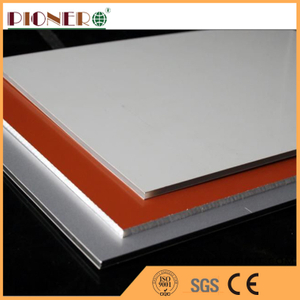

| Name | ACP aluminium composite panels |
| Panel size | 1) Standard size :1220mmx2440mm, 1220x3660mm 2) Special size: 915x2440mm,915x3660mm 3) Aluminium Skin thickness: 0.06mm, 0.08mm,0.15mm,0.20mm,0.30mm,0.5mm |
| Materials | 1) Face: Aluminium alloy sheet coated with PVDF or PE. 2) Core: nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2). 3) Back: Aluminium coated with polyester service coating. |
| Quality | Breakable core, or Non-breakable Core |
| Characteristics | 1)Light weight, the intensity is high, easy to maintain, cut bend, arch and install. The panel average weight is 3.5 - 5.5 kg/sqm. 2)Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping. 3)The surface is smooth and flat and easy to maintain., just use neutral cleaner and water can totally renew the panel. 4)The aluminium surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance. |
| Application 1) | 1)Constructional exterior curtain walls; 2)Decorative renovation for storey-added old buildings; 3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens andbalconies; 4)Advertisement board, display platforms and signboards; 5) Wallboard and ceilings for tunnels; 6) Raw materials in industrial purpose; 7)Materials used for vehicle and boat. |
| Certification | According to GB/17448-1999 standard and have passed ISO9001, ISO14001, SGS, CE, BV etc. |
| Name | ACP aluminium composite panels |
| Panel size | 1) Standard size :1220mmx2440mm, 1220x3660mm 2) Special size: 915x2440mm,915x3660mm 3) Aluminium Skin thickness: 0.06mm, 0.08mm,0.15mm,0.20mm,0.30mm,0.5mm |
| Materials | 1) Face: Aluminium alloy sheet coated with PVDF or PE. 2) Core: nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2). 3) Back: Aluminium coated with polyester service coating. |
| Quality | Breakable core, or Non-breakable Core |
| Characteristics | 1)Light weight, the intensity is high, easy to maintain, cut bend, arch and install. The panel average weight is 3.5 - 5.5 kg/sqm. 2)Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping. 3)The surface is smooth and flat and easy to maintain., just use neutral cleaner and water can totally renew the panel. 4)The aluminium surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance. |
| Application 1) | 1)Constructional exterior curtain walls; 2)Decorative renovation for storey-added old buildings; 3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens andbalconies; 4)Advertisement board, display platforms and signboards; 5) Wallboard and ceilings for tunnels; 6) Raw materials in industrial purpose; 7)Materials used for vehicle and boat. |
| Certification | According to GB/17448-1999 standard and have passed ISO9001, ISO14001, SGS, CE, BV etc. |
