WBP Glue Brown Film Faced Concrete Formwork Plywood

Thickness: 9 MM / 12 MM / 15 MM / 18 MM / 21 MM
Glue : melamine WBP glue / phenolic WBP glue / MR glue
Core : poplar / hardwood / eucalyptus / brich / combine
Film: black / brown / red
Logo: with or without
Layer: 7-13 layers

Quantity:
  • 1220X2440X18MM
  • PIONERO
  • YC001
  • 18-Ply Boards
  • E2
  • First-Class
  • Poplar
Film faced plywood,Marine Plywood,Shuttering Plywood
1)Thickness: 9mm ,12mm,15mm,18mm,21mm,24mm.
2)Size: 915x1830mm,1220x2440mm,610X2440MM,1200x2400mm,1250x2500mm, 610x2440x18mm
3)Core: Poplar core,Hardwood core,Birch core,Combi core,renewed core etc.
4)Film: black film 240g/sqm, brown film 120g/sqm, yellow film plywood, green film plywood, red film plywood etc.
Wiremeshed anti-sliperry plywood, W/F plywood,  one side smooth another side wiremeshed anti-slip.
5)Glue: Phenolic WBP glue; Melamine WBP glue; MR glue
6)Edges Treatment : firslty sealed by phenolic waterproof glue, then painted by water-proof paint in black color or brown color or as requested

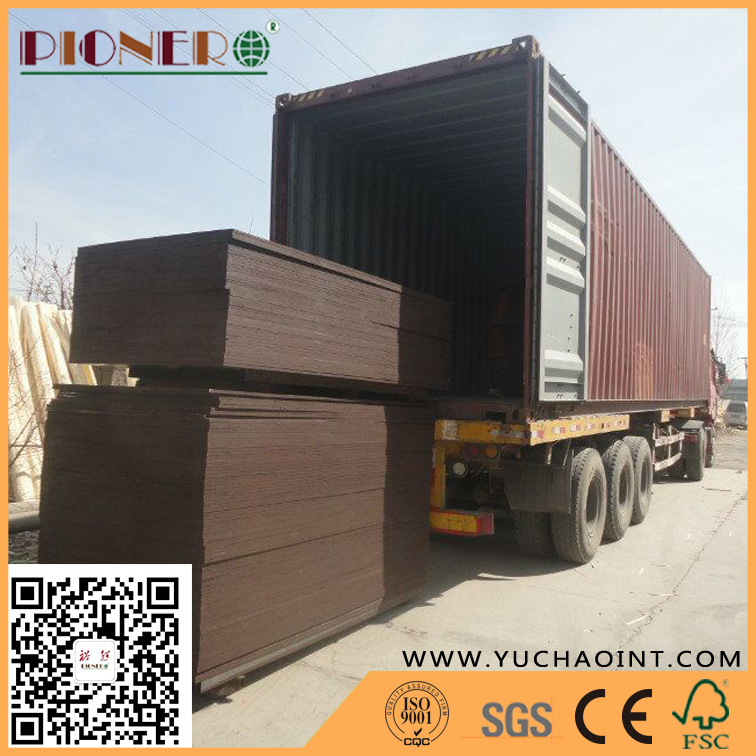

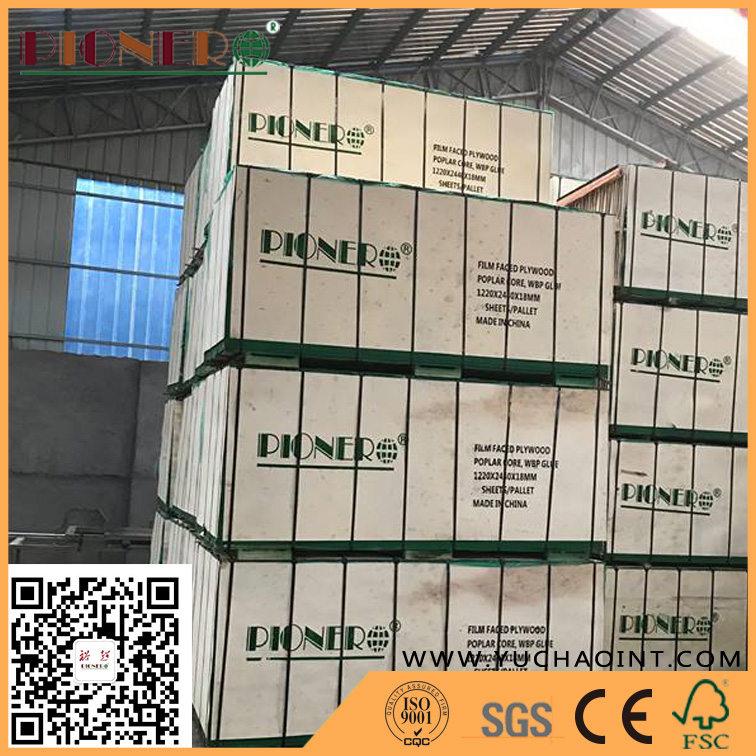

Packing: covered by plastic bag, fastened by steel belts with pallets, strong export packing.

 DETAILED PARAMETERS
ventional data: Size: 915*1830mm, 1220mm*2440mm &1250mm*2500mm

 Thickness:

(9-21mm)

3/8inch(8.5-10.2mm) 9mm = 37.325sheets/cbm
1/2inch(12-12.7mm) 12mm = 27.99sheets/cbm
5/8inch(15-16mm) 15mm = 22.395sheets/cbm
3/4inch(18-19mm) 18mm = 18.66sheets/cbm
Core:  poplar,hardwood,combi,pine, finger jionted/recycled core
Glue:  WBM, MLM, MR
Face/back:  Black/Brown/ Red film/Yellow film
Grade: A/A, B/B,C/C
Moisture: <12%

Thickness tolerance:

Thickness tolerance +/-0.5mm
Length/width tolerance +/-0.2mm

Physical parameters:

density:>550-650G/cbm
modulus of rupture: > 30Mpa
modulus of elasticity :>6000Mpa

Quantity:


20'GP 8Pallets
40'GP 16Pallets
40'HQ 18Pallets
Production:
initpintu_副本19
