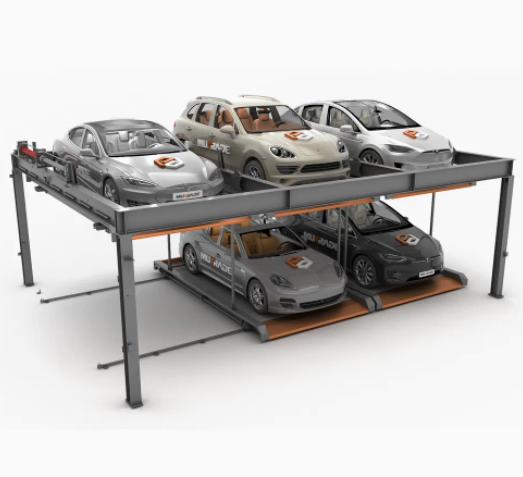

Multi-Layer Parking Buildings Estacionamiento Vertical Puzzle Parking System

Product Parament

Features&Advantages

- For independent parking

- Hydraulic driven, safer & quieter

- Above ground installation with 2 parking levels

- Platform load capacity: 2000kg or 2500kg

- Variable arrangements possible, from 3 to 10 grids wide (5 to 19 cars)

- Usable platform width: 2100mm as standard, up to 2600mm

- Installation height (with car): from 3432mm

- Vehicle size: L5000mm, H1550~2050mm on request

- Multiple electrical safety devices

- Smart operation via ID card or key fob

- Security vertical gate is optional

- Fine finishing of powder coating

- Motorized system is optional (capacity 2000kg)

- Roofing and façade can be added by customer to protect from weather

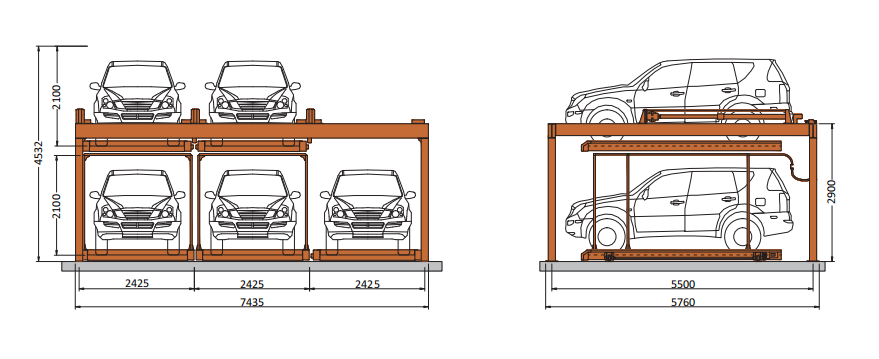

Dimensions

Factory
