Product Description
Features:
--3200mm cutting length.

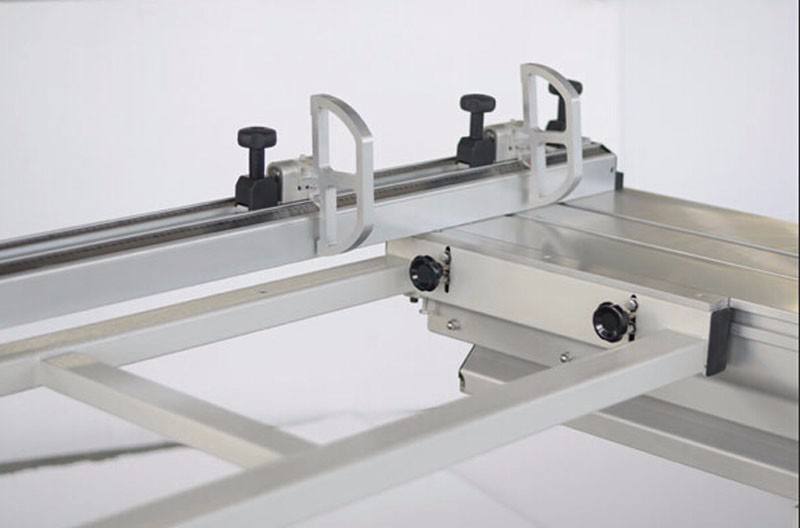

-- sliding table, 3200*415mm size.
--electric control for main saw blade up and down, tilt
--45 degree with digital readout.
--5.5kw+1.1kw National standard motor.
--linear guide internal structure, precision, stable.
Technical parameter:
Model | MJ61-32TAZ |
Sliding table size | 3200*415mm |
Saw blade diameter | 300(250-400)mm |
Gross cut capacity | 3200mm |
Height of cut (300mm) | 70-80mm |
Width between saw blade&rip fence | 1250mm |
Main saw spindle speed | 4500/6000rpm |
Tilting saw blade | 0-45-90° |
Scoring saw blade speed | 8000rpm |
Main motor Power | 5.5kw |
Scoring saw diameter | 20mm |
Scoring motor power | 1.1kw |
Weight | 950kgs |
Scoring saw blade dia | 120mm |
Machine body package size | 2200*1150 *1100mm |
