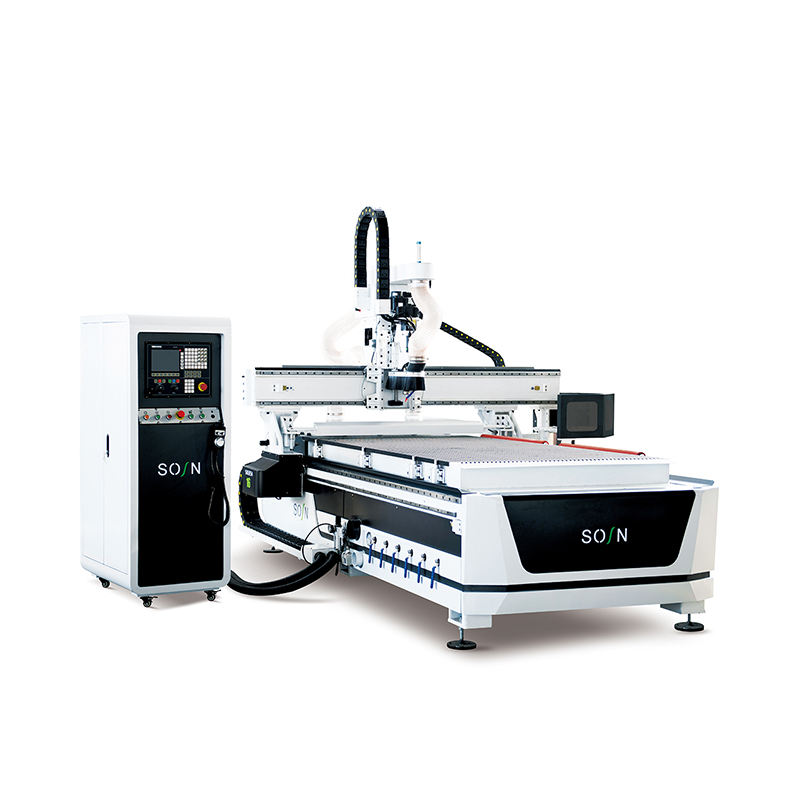

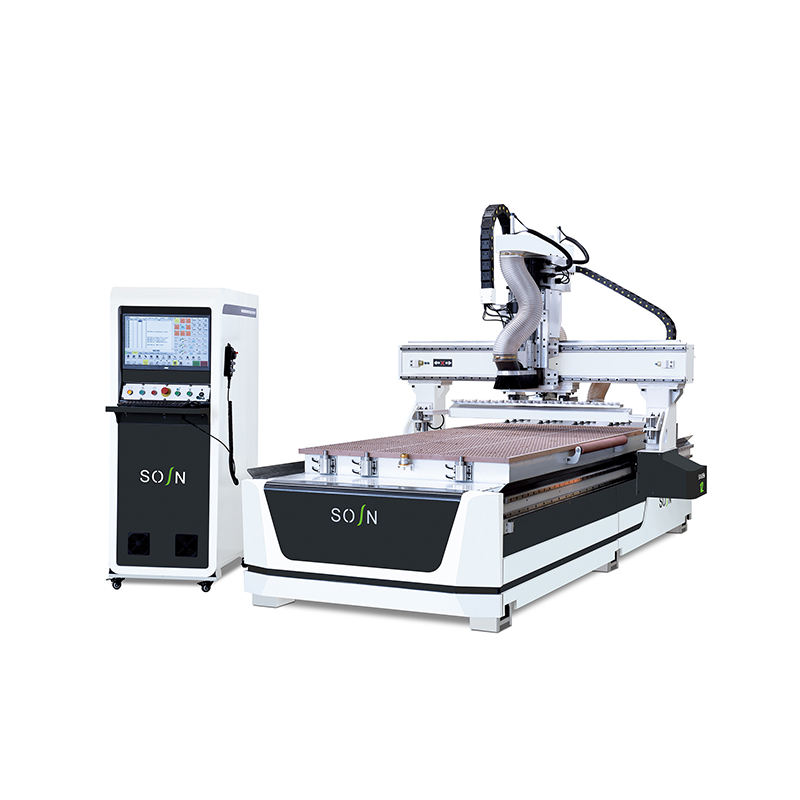

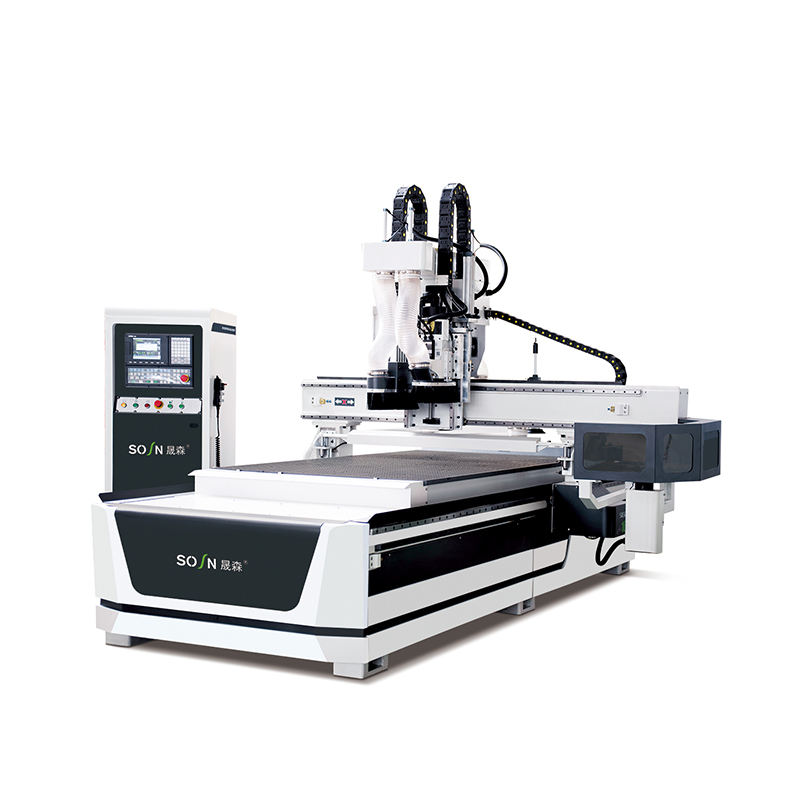

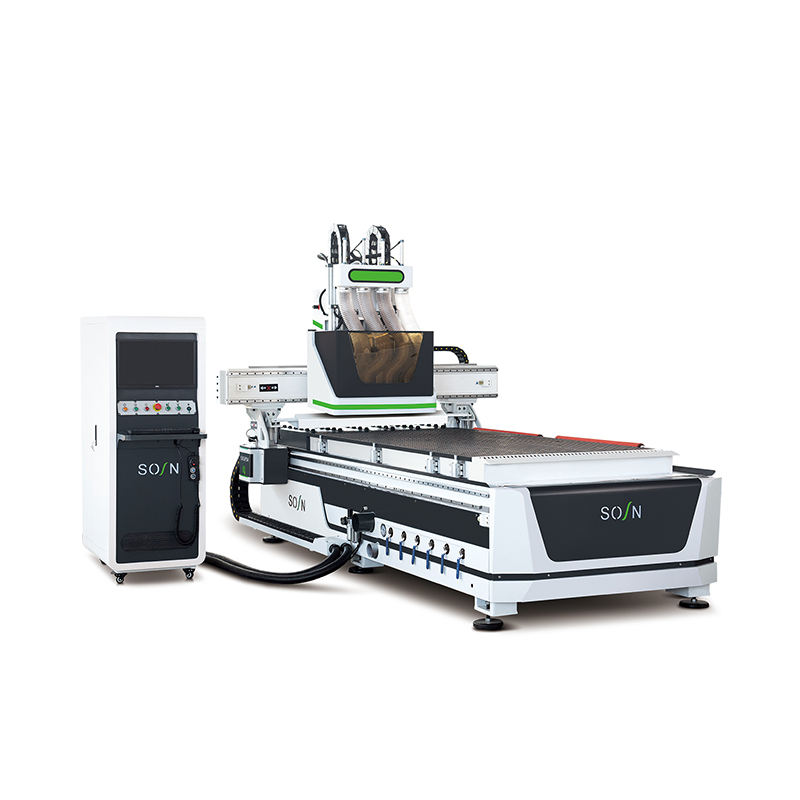

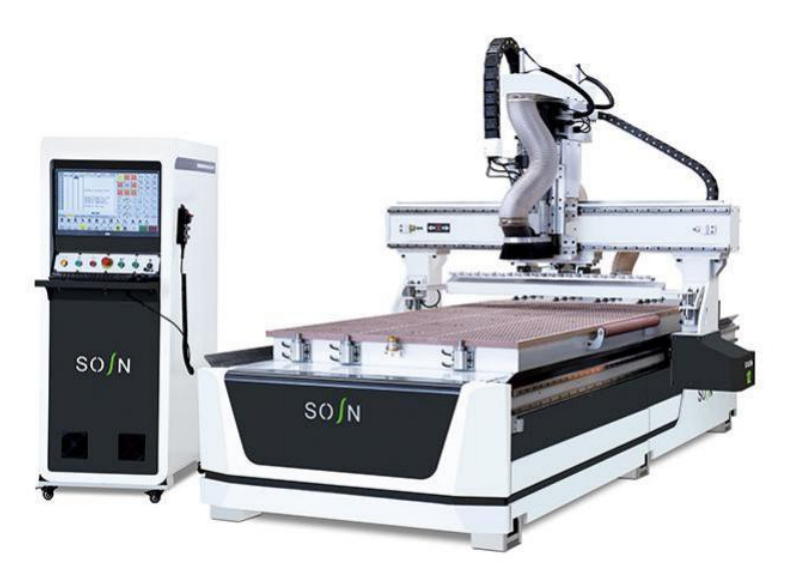

Wood CNC Router 1325 for Cutting, Drilling And Slotting The MDF Boards

Availability:
Quantity:

Product Description

Features:

1.Optimized cutting, vertical drilling, and automatic feeding are all completed in one go, without

interruption, maximizing efficiency and output.

2.The machine control interface requires minimal operator training.

3.Safe and intelligent, it features intelligent over-the-width protection to prevent collisions caused by

designs exceeding the processing width.

4.Features include power-off resume, power-off recovery, and process time prediction.

5.Powerful vacuum suction perfectly handles custom cuts and small parts, with a minimum cutting width of

25mm.

Model

1325A-12

Working table size

1300*2500mm/ 2000*3000mm

Control system

Taiwan LNC system

Max speed

60m/min(MAX)

Locate mode

High precision automatic positioning cylinder

Working speed

15-20m/min(MAX)(depends on materials and thickness )

Table structure

Strong Vacuum worktable

Main spindle

CC 9KW (24000r/min)

Electrics

French Schneider

Drive system

INVT SERVO

Inverter

Fuling

Guide

30

Vacuum pump

7.5kw/11kw water vacuum pump
